Deciphering the Kchibo KK-9615

The Kchibo KK-9615 is a Chinese AM/FM/Shortwave shirt-pocket radio from a decade or so ago. It has analog tuning and a digital display with clock and alarm.

I know of no English-language manual for the Kchibo KK-9615, but through trial and error I discovered how it works. Below is a labeled photo.

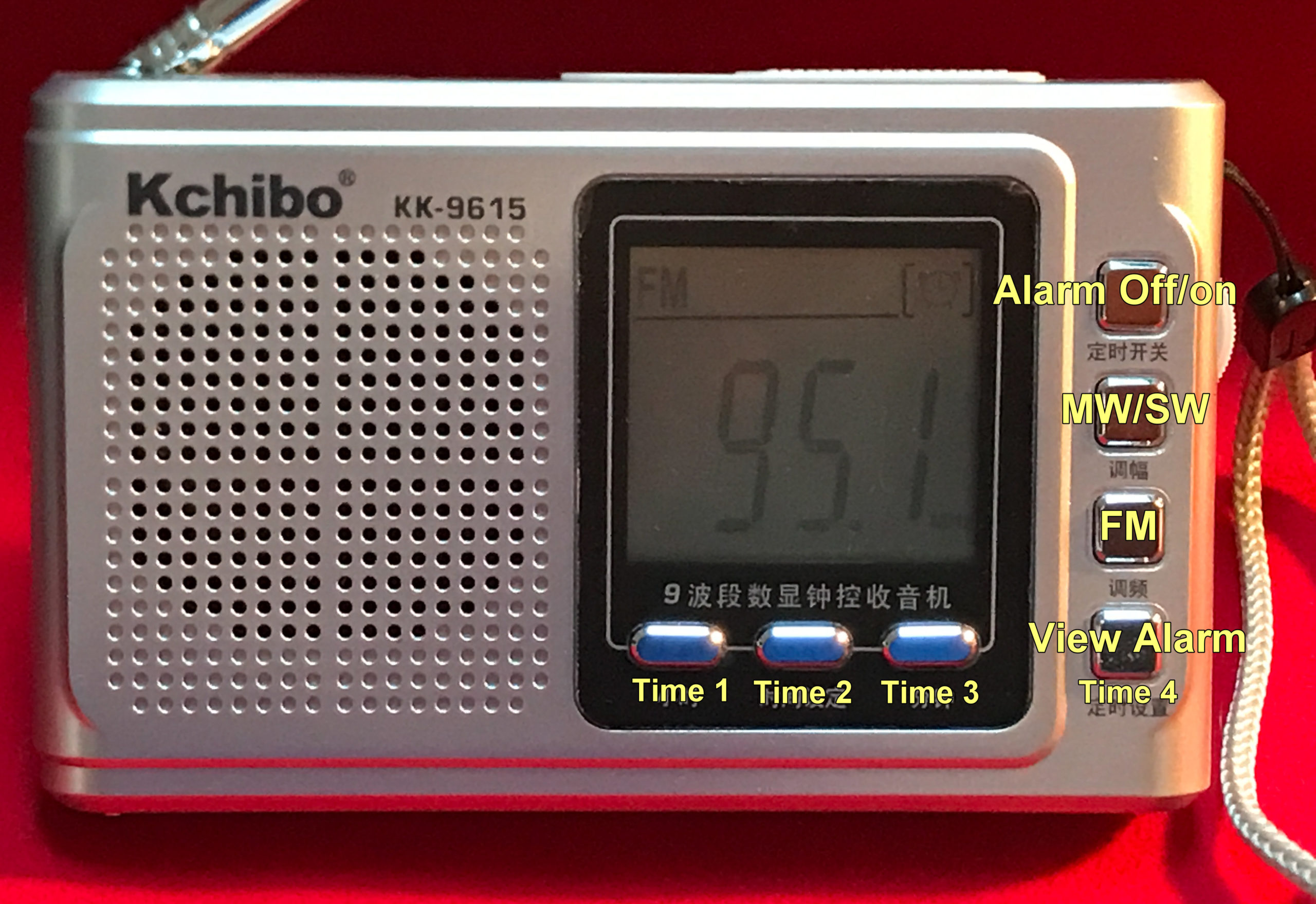

Kchibo KK-9615 Radio with Labeled Buttons

Radio operation

The power switch is on the side of the radio, lower right. The tuning knob is on the side of the radio, upper right. The volume control is on the side of the radio, upper left. To tune an FM station, flip the power switch downward, extend the antenna, press the FM button (see photo), and tune the radio with the tuning knob. The large display shows “FM” and the frequency below. To tune MW (AM) press the MW/SW button and set the band selection (top of radio) to MW. The display shows “MW.” To tune shortwave, again press the MW/SW switch and use the band selector to pick the desired shortwave band; the display shows “SW.”

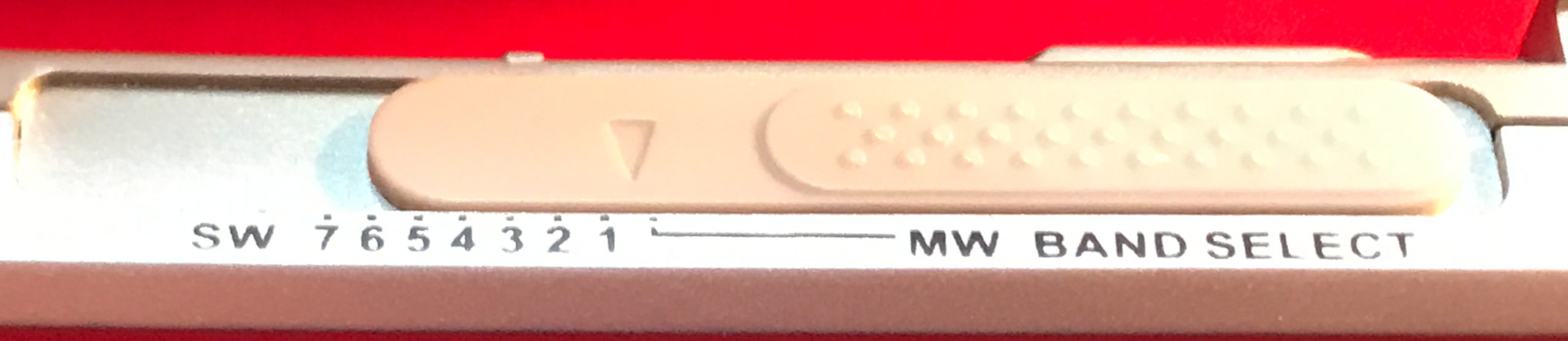

Bandswitch

Alarm On/Off/View

With the radio on or off, press the Alarm Off/on button to turn the alarm on or off. A clock icon will display on the radio screen to indicate when it’s set. To display the alarm time, press the View Alarm button.

Time/Alarm setting

To set the clock or the alarm time, first turn the radio off. Press and hold the Time 1 button while pressing the Time 2 button repeatedly to set the hour. Press and hold the Time 2 button while repeatedly pressing the Time 3 button to set the clock minutes. To set the Alarm time, press and hold the View Alarm button while repeatedly pressing the Time 1 button to set alarm hour. Press and hold the View Alarm button while repeatedly pressing the Time 3 button to set the alarm minutes.

Using the Radio

The most noticeable thing about the radio is how loud it is, especially for its size. The size is quite small; I measured 113 x 72 x 21 mm. I found reception to be good for a cheap pocket radio. Here is the frequency coverage:

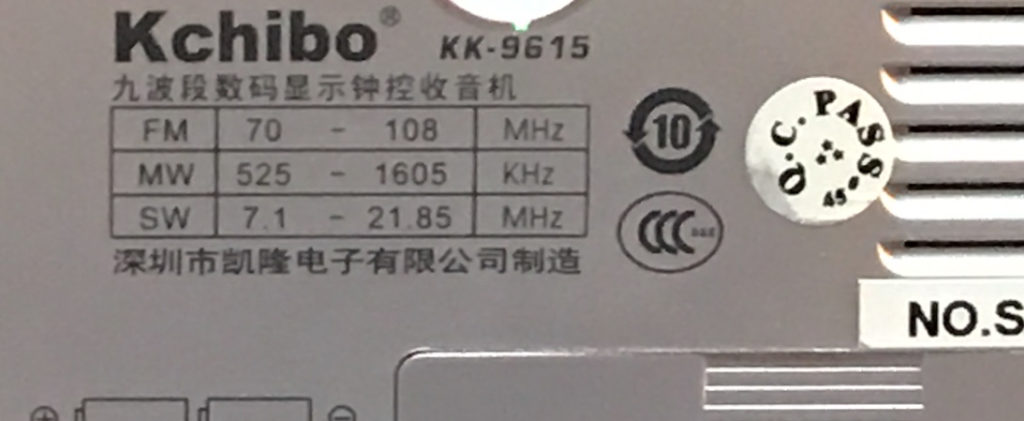

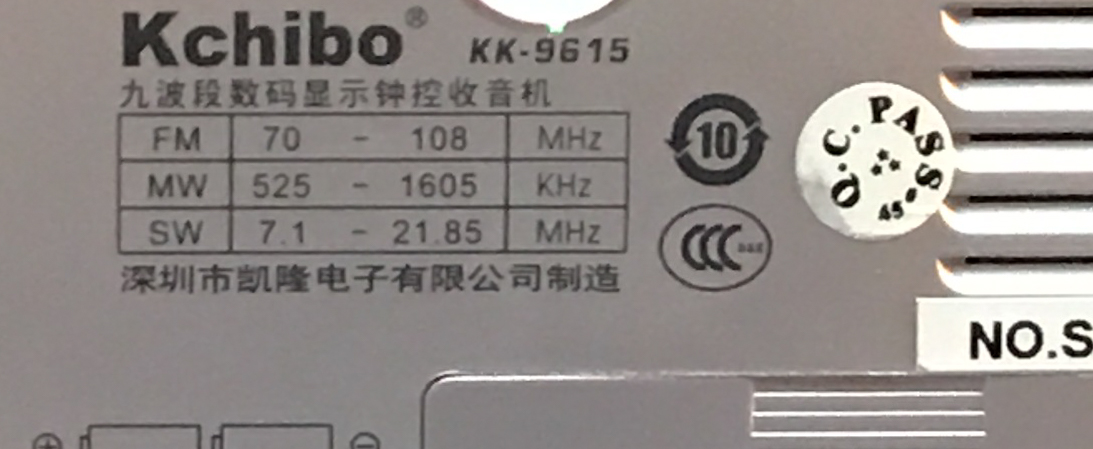

Kchibo KK-9615 Back Detail
