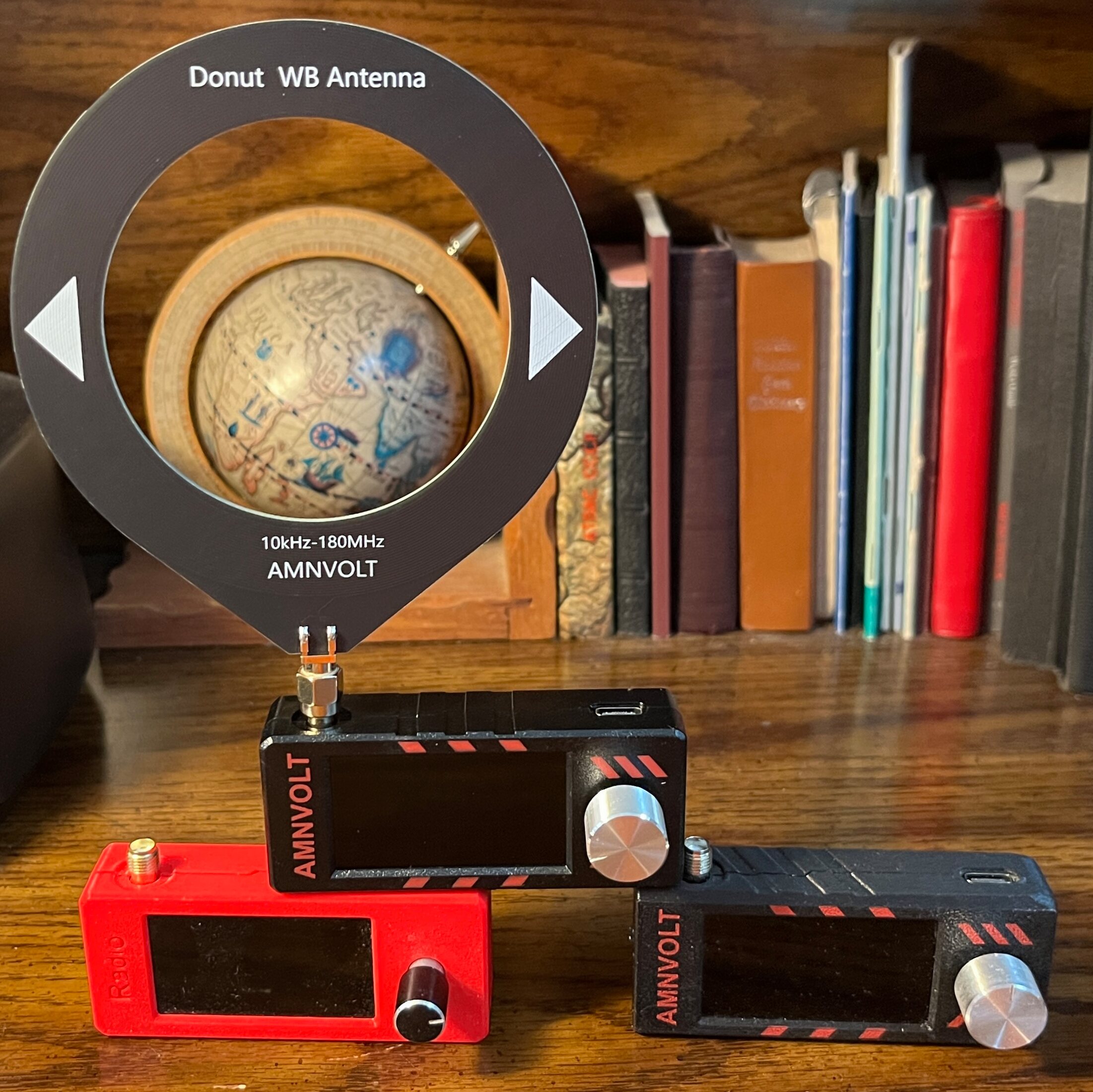

My Si4732 ATS Mini ordered July 1 from the TOOLTOP Global Store on AliExpress arrived in exactly 13 days, 6 days ahead of schedule. Version 3S fixes the battery drain issue, and one can see from this photo that the unit arrived with a full battery.
It also included the black donut and telescopic antennas, plus USB C cable and information sheet.
The case is more polished, reputedly injection molded. Unit also also includes the previous modifications for headphone output and high-impedance antenna support.
The seller wrote about the V3S version:
- The latest upgraded version in June 2025
- It is equipped with a built-in HIZ circuit and a headphone amplifier circuit
- It uses an ABS injection-molded shell, which will be more sturdy and durable (previously, all shells were 3D-printed).
- the circuit has been optimized, and there will No longer be a large amount of additional power consumption after shutdown. No more the batterydrain issue.
The first order of business was to update the firmware from 1.01 to 2.28. This model uses the firmware with “OSPI” in the file name (see: https://www.blogordie.com/2025/05/arrived-on-time-amnvolt-ats-mini). I really appreciate Kevin at Blog or Die! for writing up how to configure the Wi-Fi. It saved me lots of time 😉
I just purchased two of the V3S model ATS Mini Radios from Banggood online. The case is definitely injection molded plastic instead of 3D printed. The radios arrived with 90% full charge, so the battery drain issue has been fixed. The rotary encoder had a more solid feel than my V2 model so another nice improvement there. Audio output is strong even with earphones.
I upgraded the firmware to v2.30. The radio now has a neat scan graph display and the number of memories has increased from 32 to 99.
Many thanks to the online community who keep improving the features for this radio!
Hey there,
can you provide the link to the banggood shop you bought the device from, please? There are quite a few and I am not sure at all if they deliver the correct device version.
tia, best regards,
meikel
I used the link from Fred in the Shed in the description of his YouTube video:
https://www.youtube.com/watch?v=v6DpJpWVnH8
Link to Banggood:
http://www.Banggood.com
Be sure to look for the Amnvolt V3S model. I’ve updated the firmware on my two V3S models to v2.33. Both are working well with no issues.
Kevin
I hope you can be of assistance
I would like to purchase a AMNVOLT MINI SI4732 V3S with FIRMWARE 2.28 OR GREATER ALREADY INSTALLED.
I no capability of upgrading firmware.
There are so many manufacturers and retailers with the 1.01 firmware even though they state latest firmware.
Would you know of the AMNVOLT Co contact or retailer that has V3S firmware 2.28 or greater.
Thanks
Pete
I do not know of any. Like you, all sellers I have seen offer only the 1.01 firmware.
Hey!
Hope you are doing well. Do you have a link to buy this V3s version?
Thank you!
This is the link on my order:
https://www.aliexpress.us/item/3256808676553397.html
However, the link says the item is no longer available.
This one seems to be the same thing, https://www.aliexpress.us/item/3256809204905431.html, but I assume no responsibility.
